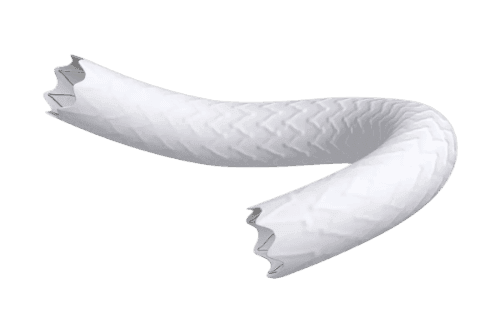

Bentley – BeGraft Stent Graft System
Improving your performance
The BeGraft Stent Graft System - part of Bentley’s medical products- is made of Cobalt-Chromium (CoCr) with an ePTFE covering that delivers a reliable solution for challenging arterial anatomies in complex endovascular procedures. THE KNOWN ONE Building on Bentley’s flagship device, the BeGraft peripheral is now indicated for the on-label use in FEVAR procedures.
Interested in ordering the Bentley BeGraft stent? Get in touch for a quote, brochure, or to arrange a product demo.
Partner
Specs
Stent Material: Cobalt-Chromium (CoCr, L-605)
Graft Material: ePTFE
Stent Graft Design:
- Single stent scaffold
- Open-cell design
- Patented ePTFE cover fixation
Delivery System: 0.035” Over-the-Wire (OTW)
Catheter Shaft Lengths: 75 cm and 120 cm
Expanded Stent Graft Diameter:
- Small Vessel (SV): Ø 5 mm, Ø 6 mm
- Medium Vessel (MV): Ø 7 mm, Ø 8 mm
- Large Vessel (LV): Ø 9 mm, Ø 10 mm
Nominal Stent Graft Lengths:
- SV: 18, 22, 28, 38, 58 mm
- MV: 18, 23, 27, 37, 57 mm
- LV: 27, 37, 57 mm
Introducer Sheath Compatibility:
- 6 F: up to Ø 8 mm x 57 mm
- 7 F: for Ø 9 mm and Ø 10 mm
Shelf Life: 3 years Full Specs
