Endovascular
Bentley – BeGraft aortic stent

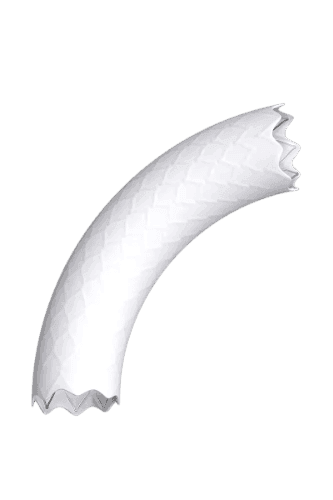

The BeGraft aortic Stent Graft System
The Bentley BeGraft aortic stent graft system is a medical product which combines low foreshortening with a high radial force. The Cobalt-Chromium (CoCr) stent is covered with a ePTFE tubing.
Interested in ordering the Bentley BeGraft aortic stent? Get in touch for a quote, brochure, or to arrange a product demo.
Partner
Specs
Stent and Graft Design:
- Stent Material: Cobalt-Chromium alloy (CoCr – L605)
- Graft Material: ePTFE covering
- Design: Open-cell stent structure covered with ePTFE
Delivery System:
- Configuration: Pre-mounted on a balloon catheter
- Guidewire Compatibility: 0.035" (Over-the-Wire)
- Balloon Markers: Two platinum/iridium markers
- Catheter Shaft Lengths: 75 cm and 120 cm
Stent Diameters and Post-Dilation Capacities:
- Small Vessel (SV): 12 mm and 14 mm (expandable up to 20 mm)
- Medium Vessel (MV): 16 mm and 18 mm (expandable up to 24 mm)
- Large Vessel (LV): 20 mm, 22 mm, and 24 mm (expandable up to 30 mm)
Nominal Pressure
- Ø 12, 14 mm / 7 bar
- Ø 16, 18 mm / 6 bar
- Ø 20, 22 mm / 4 bar
- Ø 24 mm / 5 bar
Rated Burst Pressure
- Ø 12, 14 mm / 10 bar
- Ø 16 mm / 9 bar
- Ø 18 mm / 8 bar
- Ø 20, 22, 24 mm / 5 bar
Available Stent Lengths:
- Small Vessel (SV): 19, 29, 39, 49, 59 mm
- Medium Vessel (MV): 19, 29, 38, 48, 58 mm
- Large Vessel (LV): 27, 37, 48 mm
Introducer Sheath Compatibility:
- 12 mm diameter: 9F sheath
- 14 and 16 mm diameters: 11F sheath
- 18 - 24 mm diameters: 14F sheath
Shelf Life: Up to 3 years
Indications:
- Treatment of native or recurrent coarctation of the aorta (CoA) in adolescent or adult patients
- Restoration and improvement of patency in the iliac arteries Full Specs
