Bentley – BeGraft coronary stent

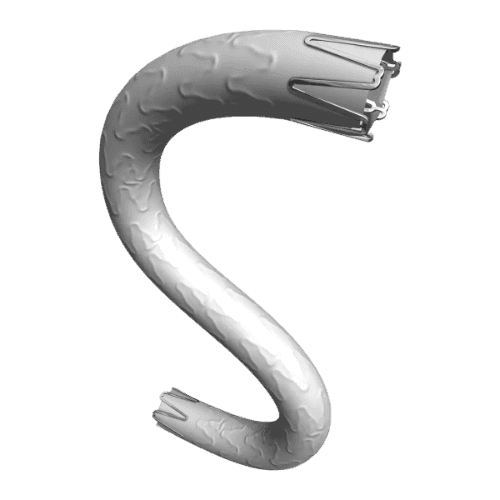

The BeGraft Coronary Stent Graft System
This extraordinary Bentley medical product combines a highly flexible one-layer stent graft with a low-profile balloon catheter to offer an unrivaled small guiding catheter compatibility. The cobalt-chrome stent platform is covered with a microporous ePTFE membrane.
Interested in ordering the Bentley BeGraft coronary stent? Get in touch for a quote, brochure, or to arrange a product demo.
Partner
Specs
Design: Single-layer stent graft with low-profile balloon catheter
Material Composition:
- Stent: Cobalt-Chrome (CoCr, L605)
- Graft: ePTFE
- Balloon Marker: Platinum/Iridium
Guide Catheter Compatibility: 5F (all sizes)
Guide Wire Compatibility: 0.014”
Shaft Size:
- 2.7 F distal / 1.9 F proximal (Ø 2.5–4.0 mm)
- 3.2 F distal / 1.9 F proximal (Ø 4.5–5.0 mm)
Catheter Shaft Length:
- 144 cm (Ø 2.5–4.0 mm)
- 154 cm (Ø 4.5–5.0 mm)
Strut Dimensions:
- SV: 0.07 x 0.08 mm
- MV: 0.08 x 0.09 mm
- LV: 0.07 x 0.08 mm
Crimped Stent Graft Profiles:
- Ø 1.1 mm (Ø 2.5)
- Ø 1.2 mm (Ø 3.0)
- Ø 1.3 mm (Ø 4.0)
- Ø 1.4 mm (Ø 5.0)
Stent Graft Coverage: 100% (for all sizes)
Nominal Pressure:
- 11 bar (Ø 2.5–4.0 mm)
- 10 bar (Ø 4.5–5.0 mm)
Rated Burst Pressure:
- 16 bar (Ø 2.5–4.0 mm)
- 14 bar (Ø 4.5–5.0 mm)
Size Options Expanded Diameters:
- 2.50 mm (SV)
- 2.75, 3.00, 3.50, 4.00 mm (MV)
- 4.50, 5.00 mm (LV)
Nominal Lengths:
- 8, 12, 16, 18, 21, 24 mm (SV and MV)
- 16, 18, 21, 24 mm (LV)
Indications, treatment of:
- Acute perforation or rupture of coronary arteries
- Aneurysms of coronary arteries or coronary bypass vein grafts
Additional Information Shelf Life: Up to 3 years
Ordering: Each size combination has a specific catalogue number
Manufacturer: Bentley InnoMed GmbH, Germany Full Specs
