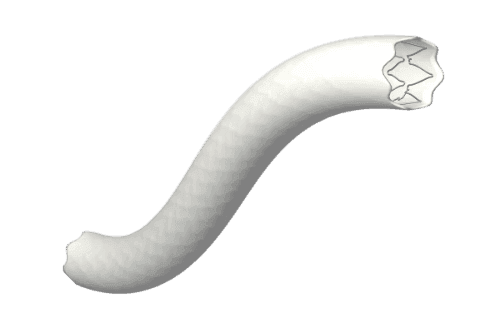

Bentley – BeGraft peripheral plus Stent Graft System

Stent Material:

• Graft: Two layers of micro-porous ePTFE (203 ± 25 µm)
• Stent: Cobalt-Chromium (CoCr L605)
• Design: Double stent with ePTFE between and outside the stents

Strut Dimensions (Width x Thickness): Inner Stent:

• SV: 0.145 x 0.115 mm
• MV: 0.155 x 0.115 mm
• LV: 0.145 x 0.115 mm

Outer Stent:

• SV: 0.155 x 0.115 mm
• MV: 0.145 x 0.115 mm
• LV: 0.135 x 0.115 mm

Sizes Expanded Stent Graft Diameter:

• 5.0, 6.0 mm (SV)
• 7.0, 8.0 mm (MV)
• 9.0, 10.0 mm (LV)

Nominal Stent Graft Length:

• SV: 28, 38, 58 mm
• MV/LV: 27, 37, 57 mm

Performance

• Radial Force: Up to 3.5× higher than other balloon expandable covered stents
• Flexibility: High bending performance
• (+97.2% vs other)

Delivery System

• Type: Over-the-wire (OTW)

Introducer Sheath Compatibility:

• 7 F for sizes up to Ø 8 x 57 mm
• 8 F for Ø 9–10 mm

Catheter Shaft Length: 120 cm

Shaft Size: 5 F

Guide Wire: 0.035"

Balloon Marker: Platinum / Iridium

Pressure Ratings Nominal Pressure:

• 11 bar (Ø 5 + 6 mm)
• 9 bar (Ø 7 + 8 mm)
• 8 bar (Ø 9 + 10 mm)

Rated Burst Pressure:

• 13 bar (Ø 5 + 6 mm)
• 12 bar (Ø 7 – 10 mm)
