High radial force whilst maintaining extraordinary flexibility and low profile

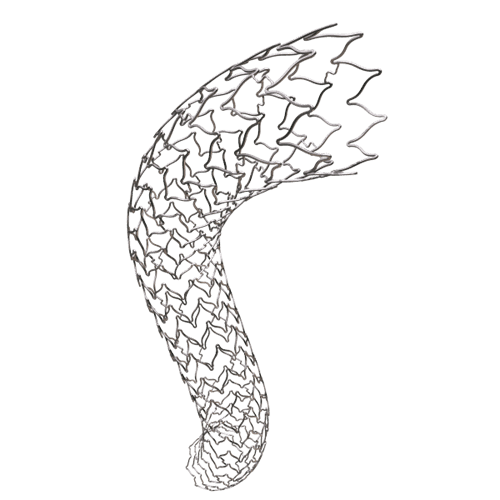

One of Bentley’s medical products is the BeSmooth Peripheral Stent System, which is indicated for the treatment of de novo or restenotic artherosclerotic lesions in protected peripheral arteries.

The low profile ensures

6 F compatibility for all sizes

Good vessel adaptation

due to high flexibility

High stability in stenotic lesions

through optimized CoCr stent design

Interested in ordering the Bentley BeSmooth peripheral stent? Get in touch for a quote, brochure, or to arrange a product demo.

Stent Material: CoCr (Cobalt-Chromium) alloy, L605

Strut Dimensions:

SV (Small Vessel): 0.135 × 0.145 mm
MV (Medium Vessel): 0.145 × 0.145 mm
LV (Large Vessel): 0.165 × 0.145 mm

Balloon & Catheter Balloon Marker Material: Platinum / Iridium

Nominal Pressure:

Ø 5.0 – 6.0 mm: 10 bar
Ø 7.0 – 10.0 mm: 8 bar

Rated Burst Pressure:

Ø 5.0 – 6.0 mm: 13 bar
Ø 7.0 – 10.0 mm: 12 bar

Guide Wire Compatibility: 0.035"

Introducer Sheath Compatibility: 6 F

Catheter Shaft Size: 5 F

Catheter Shaft Lengths: 75 cm and 120 cm

Stent Sizes

Expanded Diameters: 5.0 – 10.0 mm

Nominal Lengths: SV: 18, 23, 28, 38, 58 mm MV: 18, 23, 27, 38, 57 mm LV: 18, 23, 28, 38, 57 mm Shelf Life: Up to 3 years Full Specs
